G41 4 Piston Big Brake Kit For High Performance Wey Tank 300 auto brake system
Front kit included :
2 x calipers 6pistons
2 x Disc rotor
4 x Brake Pads
2 x Brake lines
TEI Racing has launched a special car caliper kit for the launch of the
original high -precision development and testing, taking into account
the performance and comfortable street performance brake kit of
performance and comfort.
The performance brake kit for the tank 300 (Great Wall Cannon) is
developed and developed in the same period. After experiencing rigorous
testing, it has extremely high matching characteristics, and does not make
any compromise in driving safety. The selection of materials is also the top
material and production process in the industry. It has high -quality guarantee,
and always ensures that users get a high -quality driving control experience.
This has been upgraded in multiple aspects of P40NS+four-piston brake
calipers. The model is named G41-tank 300, which accurately corresponds
to the original pores, and matches the original total pump oil supply.
The arranging design of the four pistons makes the brake foot feel more
sensitive and direct; to ensure that each brake can give the driver control
experience calmly and confidently.
Two pieces of forging process: Calcotts are forged by 6082 aviation
aluminum alloy, high intensity, lightweight, enhance driving texture
and driving control experience. The weight of a single caliper is about 3.65kg.
The appearance of the caliper is high -temperature paint technology,
which can make the color durable. Even in harsh environments,
there will be no fading or fading.
The external dust cover structure is adopted internally, which enhances
the sealing while greatly reduced the chance of braking in the piston working
parts in daily use in the daily use of the piston, and has a longer maintenance life.
The size of the piston is 41mm*4, and the total oil supply area is 52.78cm²
square centimeters.
Adaptation to the installation of wheels above 17 inches, the corresponding
disc size is: 335*32mm special plate. (The discs have holes on the plate,
and the line disk is optional)

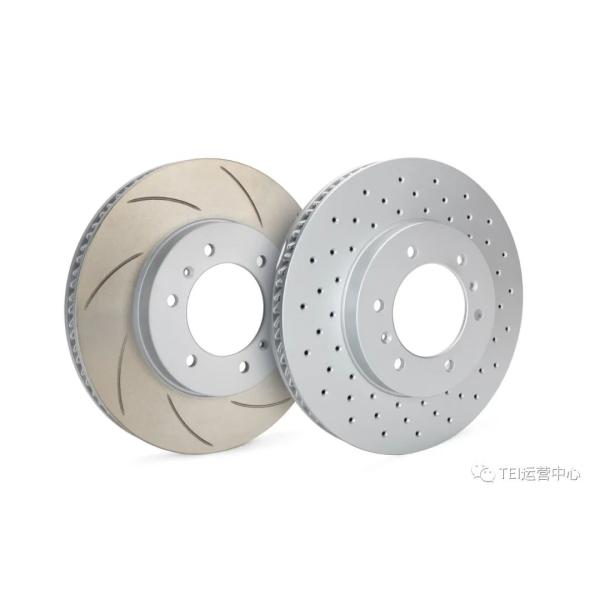

High -carbon alloy heat treatment brake disc: Use the guide ventilation
structure to achieve the best braking stability and heat dissipation and
cooling effect, line, punching high -speed brake disc, increase braking
friction, and effectively reduce industrial frequency noise, so that it will
be in it The braking distance can also be ensured under bad conditions.
The calipers provide four colors, which combines the open wheel
design to achieve a very good visual effect. The appearance is well
matched with the design language of the vehicle and highlights its
movement characteristics.
Installation Case
